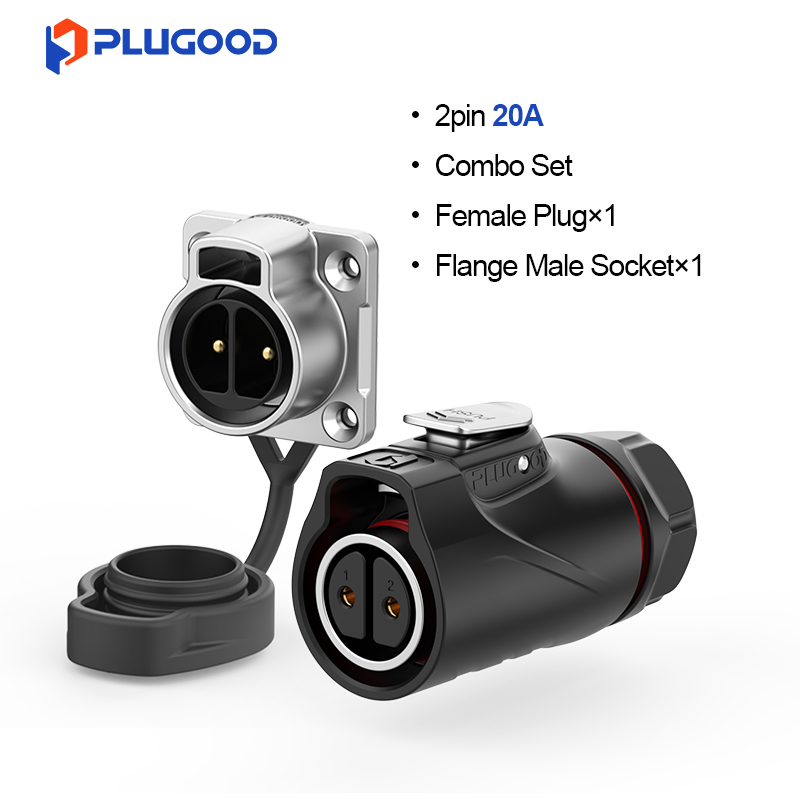

PLG20802704
| Contoct | 3.0mm | 2.6mm | 1.9mm | 1.0mm | |||||||
| Number of cores | 2 core | 3 core | 2 core | 3 core | 4 core | 5 core | 7 core | 9 core | 12 core | 16 core | |
| Product Map | Soldering(Female) |  |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Soldering(Male) |  |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
| Screwing(Female) |  |
 |
 |
 |
|||||||
| Screwing(Male) |  |
 |
 |
 |
|||||||
| Specifications | Working voltage | 500V AC | 250V AC | ||||||||
| Withstand voltage | 2500V AC | 1500V AC | |||||||||
| Rated current | 30A | 20A | 10A | 5A | |||||||
| Insulation resistance | ≥1.0mΩ | ||||||||||
| Waterproof level | IP67/ IP68 (Connection Status) | ||||||||||
| Mechanical life | ≥500 Second-rate | ||||||||||
| Applicable wire gauge | 12-10AWG/4mm² 14-12AWG/2.5-4mm² 16-14AWG/1.5mm² 22-20AWG/0.3-0.5mm² | ||||||||||
| Applicable cable outer diameter | Φ5.5 -13.5mm (Customizable) | ||||||||||
| Salt spray | 72H | ||||||||||
| 0perating temperature | ‘-25℃~+85℃ | ||||||||||
| Certification | ROHS/CE/UL/TUV/CQC | ||||||||||
